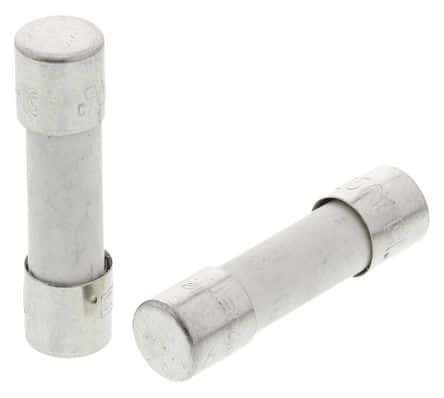

Time-delay electric fuse, 4A current rating, 250VAC/150VDC voltage rating. Features a 5x20mm ceramic body with a 1500A interrupting rating. Designed for inline or holder mounting with clip termination. Operates across a -55°C to 125°C temperature range, with a maximum power dissipation of 1.2W. RoHS compliant.
Current4A
Storage20mm
Voltage Rating250V
Current Rating4A
Quick Jump:
Technical Specifications
Schurter 0001.2510 technical specifications.
General
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Current
4A
Current Rating
4A
Diameter
5mm
Fuse Current
4A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.2W
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
300V
Mount
Holder, Surface Mount, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
1.2W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SPT 5x20
Size
20mm
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
150V
Weight
0.040212oz
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.2510 Datasheet
Download the complete datasheet for Schurter 0001.2510 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
