Time-delay electric fuse, 16A, 250VAC/125VDC rated voltage, with a 500A interrupting rating. Features a 5x20mm ceramic body, nickel-plated contacts, and a 4W power dissipation. Operates across a temperature range of -55°C to 125°C. RoHS compliant.
Current16A
Storage20mm
Voltage Rating250V
Current Rating16A
Quick Jump:
Technical Specifications
Schurter 0001.2516 technical specifications.
General
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Contact Plating
Nickel
Current
16A
Current Rating
16A
Diameter
5mm
Fuse Current
16A
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Mount
Holder, Surface Mount
Package Quantity
10
Packaging
Bulk
Power Dissipation
4W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SPT 5x20
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
0.040918oz
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0001.2516 Datasheet
Download the complete datasheet for Schurter 0001.2516 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

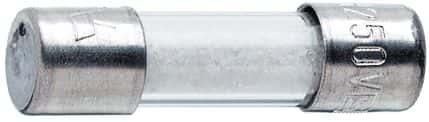

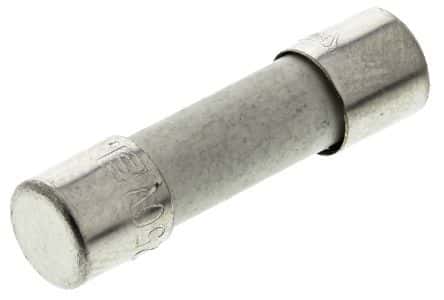

Product Images
