Illuminated, panel-mount fuse holder for 5x20mm or 6.3x32mm fuses. Features a thermoplastic body, copper alloy tin-plated contacts, and quick connect termination. Rated for 250V AC/DC and 10A fuse current, with a maximum operating temperature of 85°C. Approvals include UL, CSA, and IEC, with an IP40 rating.
Voltage250V
Voltage Rating250V
Current Rating20A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 0031.1693 technical specifications.
General
Approvals
UL, CSA, IEC
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
20A
Fuse Current
10A
Fuse Size
5x20mm or 6.3x32mm
Illumination Type
Illuminated
Length
46.5mm
Material
Tin, Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Series
FEU
Termination
Quick Connect
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.186952oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0031.1693 Datasheet
Download the complete datasheet for Schurter 0031.1693 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

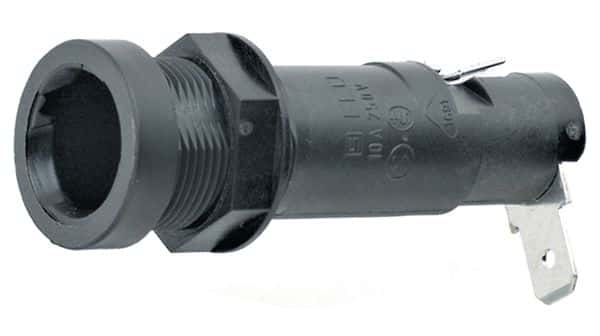

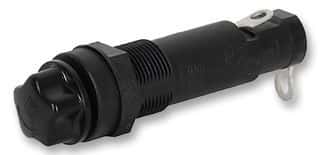

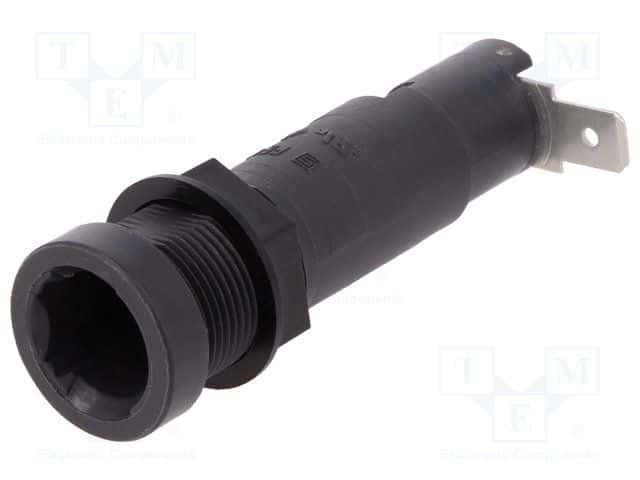

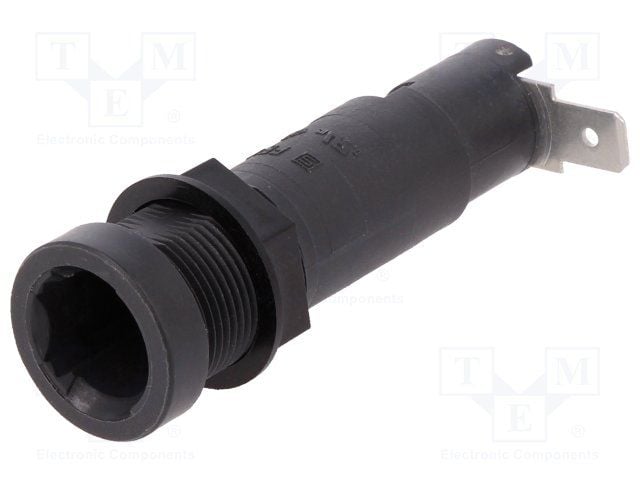

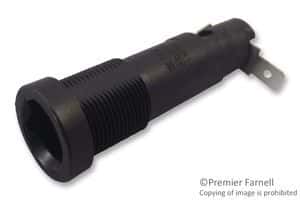

Product Images
