Surface mount and leaded PTC resettable fuse, FSF Series, offering 630mA current rating and 250V AC/DC voltage rating. Features a 5mm x 20mm glass body with nickel plated contacts, operating across a temperature range of -55°C to 125°C. Maximum power dissipation is 1.6W. Compliant with RoHS standards and approved by VDE, cURus, and CCC.
Current630mA
Voltage Rating250V
Current Rating630mA
MountingHolder, Clip
Quick Jump:
Technical Specifications
Schurter 0034.1514 technical specifications.
General
Approvals
VDE, cURus, CCC
Body Material
Glass
Contact Plating
Nickel
Current
630mA
Current Rating
630mA
Diameter
5mm
Fuse Current
630mA
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
0.787inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Max Voltage Rating (AC)
250V
Mount
Holder, Clip
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FSF 5x20
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.032452oz
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.1514 Datasheet
Download the complete datasheet for Schurter 0034.1514 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

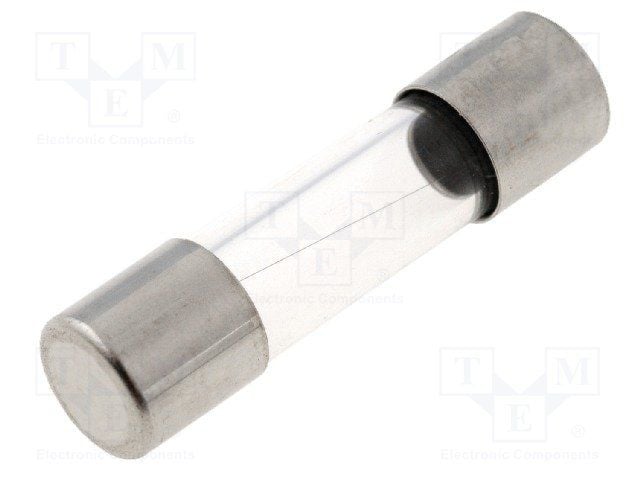

Product Images
