TIME DELAY electric fuse, 315mA current rating, 250V AC/DC voltage rating, and 1.6W power dissipation. Features a glass body with nickel-plated contacts, measuring 5 x 20mm with a 170mV dropout voltage. Operates across a wide temperature range of -55°C to 125°C. RoHS compliant and suitable for holder, surface mount, or clip mounting.
Storage20mm
Voltage Rating250V
Current Rating315mA
MountingHolder, Surface Mount, Clip
Quick Jump:
Technical Specifications
Schurter 0034.3112 technical specifications.
General
Approvals
UL, CSA, VDE, SEMKO
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Plating
Nickel
Current Rating
315mA
Diameter
5mm
Dropout Voltage
170mV
Fuse Current
315mA
Fuse Size
5 x 20mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Max Voltage Rating (AC)
250V
Mount
Holder, Surface Mount, Clip
Package Quantity
10
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FST 5x20
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.033158oz
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.3112 Datasheet
Download the complete datasheet for Schurter 0034.3112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

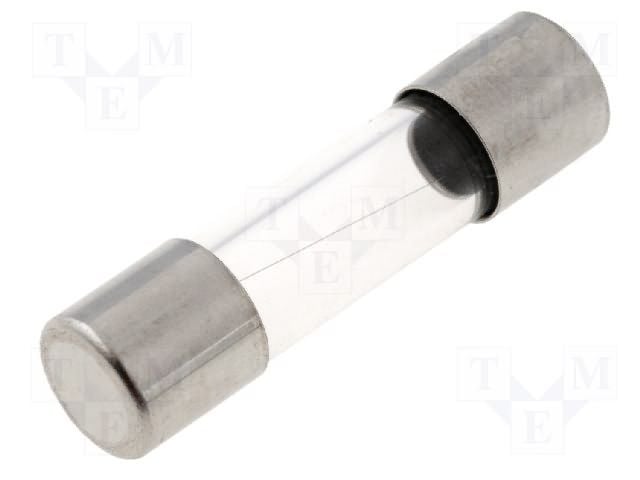

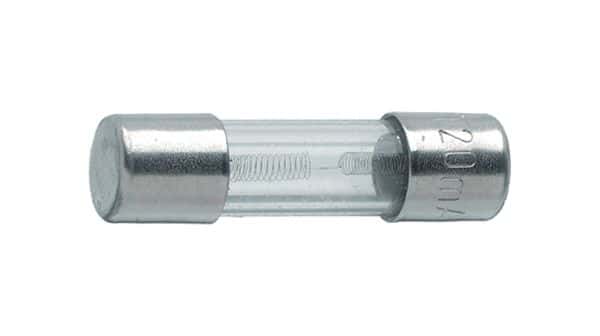

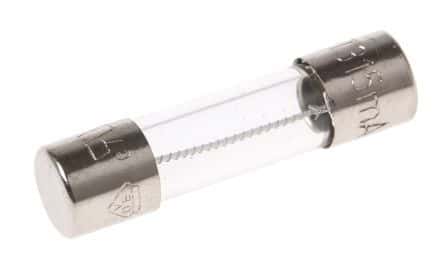

Product Images
