Subminiature radial fuse with a 6.3A current rating and 250VAC voltage rating. Features a time-delay blow characteristic and a thermoplastic body with tin-plated radial terminations. Designed for through-hole mounting, this fuse operates within a temperature range of -55°C to 125°C and is RoHS compliant.
PackageRadial
Voltage Rating250V
Current Rating6.3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 0034.6623 technical specifications.
General
Blow Characteristic
TIME DELAY
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current Rating
6.3A
Fuse Current
6.3A
Fuse Size
8.5 X 8.5mm
Length
8.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MST 250
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
63V
Weight
0.015873oz
Wire/Cable Diameter
0.64mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6623 Datasheet
Download the complete datasheet for Schurter 0034.6623 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

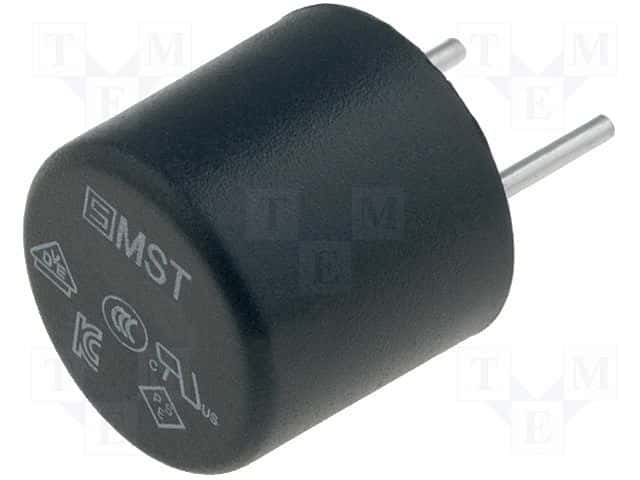

Product Images
