Time-lag electric fuse, 1A current rating, 250VAC/125VDC voltage rating, with 200A interrupting rating. Features surface mount (SMD/SMT) termination with tin terminals and a ceramic body. Operating temperature range from -55°C to 125°C, with a maximum power dissipation of 500mW. RoHS compliant and UL, VDE, cURus, CQC, PSE, KC, TUV approved. Packaged in tape and reel for automated assembly.
PackageSMD/SMT
Voltage Rating250V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Schurter 3403.0166.24 technical specifications.
General
Approvals
UL, VDE, cURus, CQC, PSE, KC, TUV
Body Material
Ceramic
Package/Case
SMD/SMT
Current Rating
1A
Depth
3mm
Fuse Size
10.1 X 3mm
Height
0.118inch
Lead Free
Lead Free
Length
10.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Power Dissipation
500mW
Radiation Hardening
No
RoHS Compliant
Yes
Series
UMT 250
Terminal Material
Tin
Termination
SMD/SMT
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
0.008113oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Schurter 3403.0166.24 Datasheet
Download the complete datasheet for Schurter 3403.0166.24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

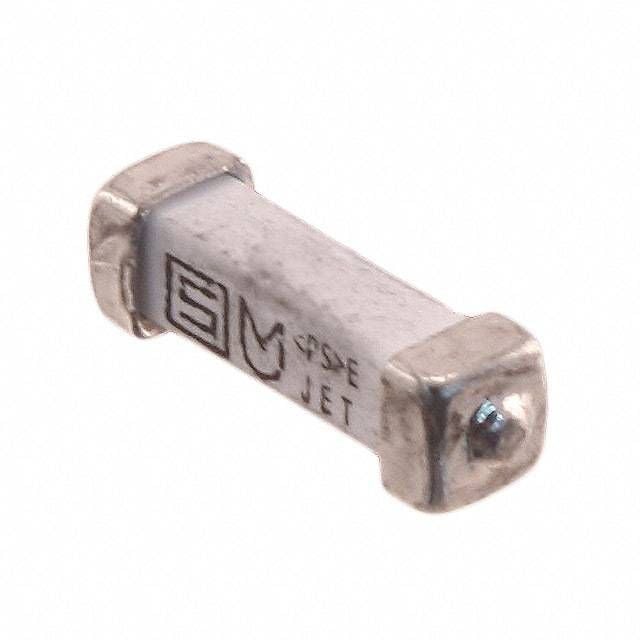

Product Images
