Very fast-acting electric fuse, 10A current rating, 125VAC/125VDC voltage rating, with a 100A interrupting rating. Features a thermoplastic body, copper alloy contacts with tin plating, and a UL94 V-0 flammability rating. Designed for surface mount applications with dimensions of 7.4mm length, 3.1mm width, and 2.6mm height. Operates within a temperature range of -55°C to 125°C.
PackageSMD/SMT
Voltage Rating125V
Current Rating10A
MountingSurface Mount
Quick Jump:
Technical Specifications
Schurter 3404.0021.11 technical specifications.
General
Approvals
cULus
Body Material
Thermoplastic
Package/Case
SMD/SMT
Contact Material
Copper Alloy
Contact Plating
Tin
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse Current
10A
Fuse Size
7.4 X 3.1mm
Height
2.6mm
Length
7.4mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Surface Mount
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
OMF 125
Terminal Material
Tin
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
0.002822oz
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Schurter 3404.0021.11 Datasheet
Download the complete datasheet for Schurter 3404.0021.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

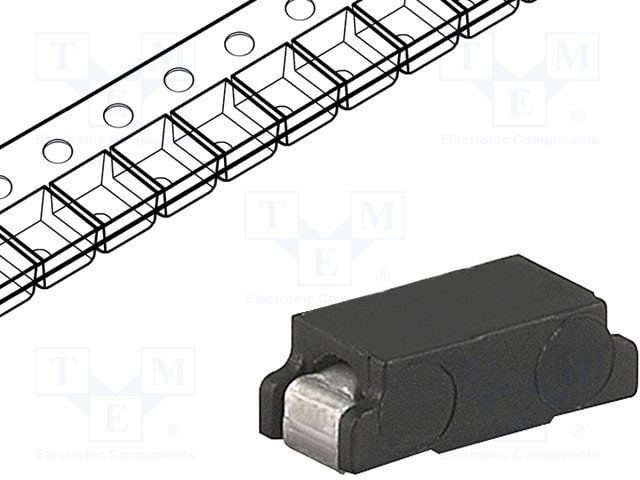

Product Images
