Surface mount time-delay electric fuse, rated for 4A at 125VAC/125VDC with a 100A interrupting rating. Features a copper alloy contact material with tin plating and a UL94 V-0 flammability rating. Operates across a temperature range of -40°C to 85°C. Compliant with RoHS standards.
PackageSMD/SMT
Storage3.1mm
Voltage Rating125V
Current Rating4A
Quick Jump:
Technical Specifications
Schurter 3404.0120.11 technical specifications.
General
Approvals
cULus, cURus
Blow Characteristic
TIME DELAY
Package/Case
SMD/SMT
Contact Material
Copper Alloy
Contact Plating
Tin
Current Rating
4A
Flammability Rating
UL94 V-0
Fuse Current
4A
Fuse Size
7.4 X 3.1mm
Height
0.102inch
Lead Free
Lead Free
Length
0.291inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Surface Mount
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
OMT 125
Size
3.1mm
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
0.002822oz
Width
0.122inch
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Schurter 3404.0120.11 Datasheet
Download the complete datasheet for Schurter 3404.0120.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

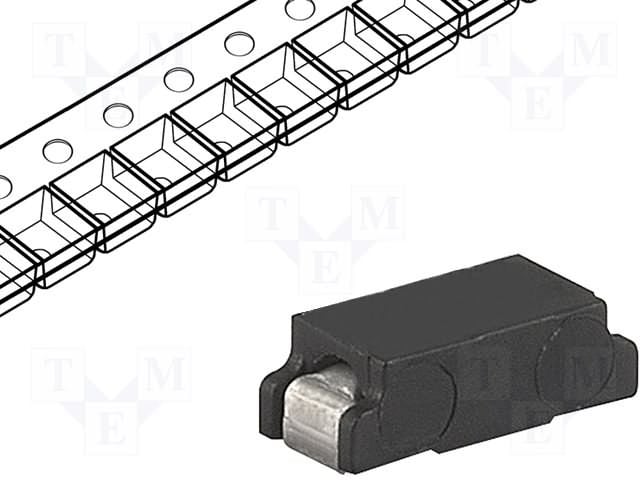

Product Images
