Surface mount electric fuse, slow blow, rated for 10A and 32VAC/63VDC, with a 100A interrupt rating. Features a 1206 case size (3.2mm x 1.6mm x 0.6mm) and glass/epoxy body construction with tin-plated copper terminals. Offers a DC cold resistance of 5.45mR and operates within a temperature range of -55°C to 90°C. This component is HALOGEN FREE and RoHS COMPLIANT, supplied in tape and reel packaging.
Package1206
Resistance5.45mR
Voltage Rating32V
Current Rating10A
Quick Jump:
Technical Specifications
Schurter 3413.0328.22 technical specifications.
General
Approvals
cULus
Body Material
Glass, Epoxy
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Contact Plating
Tin
Current Rating
10A
DC Cold Resistance
5.45mR
Fuse Current
10A
Height
0.6mm
Length
3.2mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
5.45mR
RoHS Compliant
Yes
Series
UST 1206
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
63V
Weight
0.000212oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 3413.0328.22 Datasheet
Download the complete datasheet for Schurter 3413.0328.22 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

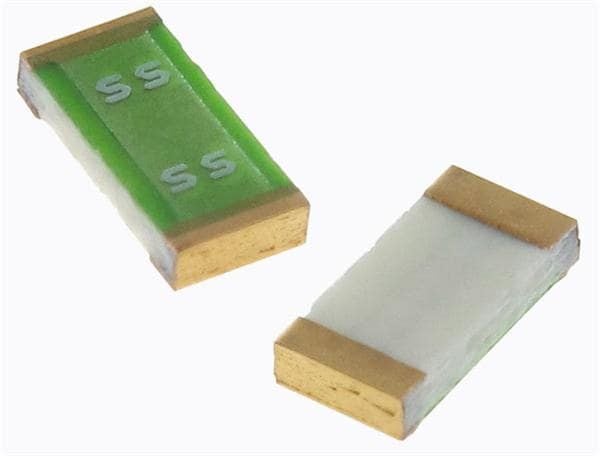

Product Images
