Surface mount electric fuse, slow blow, rated for 12A and 32VAC/63VDC, with a high interrupting rating of 100A. Features a 1206 case size (3216 metric) with gold-plated copper terminals for reliable PCB mounting. Operates across a wide temperature range from -55°C to 90°C, with a low DC cold resistance of 4.3mR. This component is HALOGEN FREE and ROHS COMPLIANT, supplied in tape and reel packaging.
Package1206
Resistance4.3mR
Voltage Rating63V
Current Rating12A
Quick Jump:
Technical Specifications
Schurter 3413.0329.22 technical specifications.
General
Approvals
cULus
Body Material
Glass, Epoxy
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Contact Material
Copper
Contact Plating
Gold
Current Rating
12A
DC Cold Resistance
4.3mR
Fuse Current
12A
Height
0.6mm
Length
3.2mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
4.3mR
RoHS Compliant
Yes
Series
UST 1206
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
63V
Voltage Rating (AC)
32V
DC Rated Voltage
63V
Weight
0.000212oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 3413.0329.22 Datasheet
Download the complete datasheet for Schurter 3413.0329.22 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

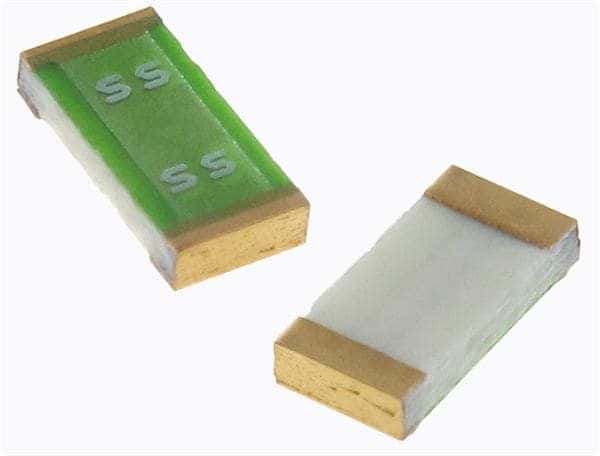

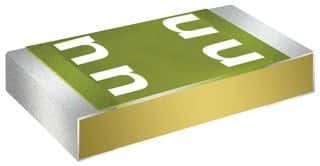

Product Images
