3-position, male mains power connector with straight orientation, featuring a 250VAC voltage rating and a 20A current rating. Constructed from UL94 V-0 rated black thermoplastic, this free-hanging or panel-mount plug utilizes screw terminals for termination and supports a wire/cable diameter up to 12mm. It offers IP40 protection and operates within a temperature range of -25°C to 70°C.
Voltage250V
Current20A
Voltage Rating250V
Current Rating20A
Quick Jump:
Technical Specifications
Schurter 4300.0922 technical specifications.
General
Body Material
Thermoplastic
Color
Black
Current
20A
Current Rating
20A
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Max Current Rating
20A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Free Hanging, Panel, Screw
Number of Conductors
3
Number of Contacts
3
Number of Positions
3
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
922
Termination
Screw
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
2.003561oz
Wire/Cable Diameter
12mm
Compliance
RoHS
Compliant
Datasheet
Schurter 4300.0922 Datasheet
Download the complete datasheet for Schurter 4300.0922 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

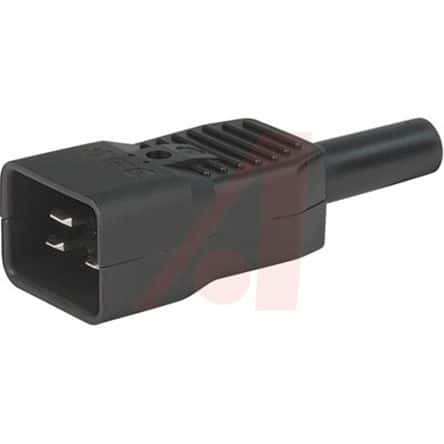

Product Images
