Mains power connector, 6A, 250VAC, male, 3-pole, 3-position with solder terminal. Features UL94 V-0 flammability rating, IP40 protection, and integrated fuse holder for 5 x 20mm fuses. Designed for panel mounting with snap-in, flange, or screw options. Operating temperature range of -25°C to 85°C. RoHS compliant and lead-free construction.
FrequencyN/A
PackageModule
Current6A
Current Rating6A
Quick Jump:
Technical Specifications
Schurter 4301.5014 technical specifications.
General
Application(s)
AC
Approvals
UL, CSA
Body Material
Thermoplastic
Package/Case
Module
Color
Black
Current
6A
Current Rating
6A
Depth
51mm
Filter Type
GENERAL PURPOSE
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Male
Height
44mm
Lead Free
Lead Free
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in, Flanges, Screw
Number of Contacts
3
Number of Poles
1
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KFA
Termination
Quick Connect
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
2.328081oz
Width
34mm
Compliance
RoHS
Compliant
Datasheet
Schurter 4301.5014 Datasheet
Download the complete datasheet for Schurter 4301.5014 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

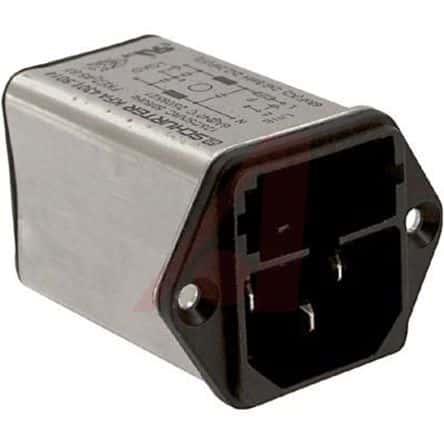

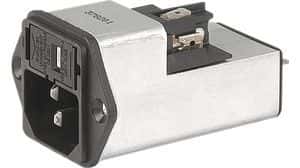

Product Images
