Mains power connector, 4A, 250VAC, male, 3-position, solder terminal plug. Features UL94 V-0 flammability rating, IP40 protection, and integrated fuse holder for 5x20mm fuses. Panel mountable with snap-in design for 3mm panel thickness. Operating temperature range of -25°C to 85°C. RoHS compliant.
FrequencyN/A
PackageModule
Current4A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter 4301.6003 technical specifications.
General
Approvals
cULus, ENEC, CCC
Package/Case
Module
Color
Black
Current
4A
Current Rating
4A
Depth
60.5mm
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Male
Height
37mm
Lead Free
Lead Free
Leakage Current
500uA
Max Current Rating
4A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Panel Thickness
3mm
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KFA
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
2.328081oz
Width
33mm
Compliance
RoHS
Compliant
Datasheet
Schurter 4301.6003 Datasheet
Download the complete datasheet for Schurter 4301.6003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

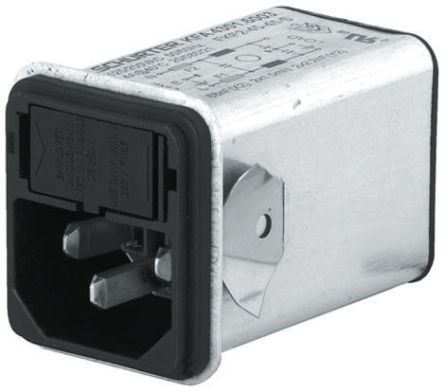

Product Images
