Mains power connector featuring a male, straight, panel-mount design with snap-in mounting. This 3-pole, 3-position connector offers a 10A current rating and 125/250VAC voltage rating, with a DC rated voltage of 250V. It includes a fuse holder for 5 x 20mm fuses and a 300µH inductance. Constructed with UL94 V-0 flammability rating, it operates between -25°C and 85°C and is RoHS compliant.
FrequencyN/A
PackageModule
Current10A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter 4301.6005 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Package/Case
Module
Color
Black
Current
10A
Current Rating
10A
Depth
51mm
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Male
Height
28.8mm
Inductance
300uH
Lead Free
Lead Free
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Panel Thickness
3mm
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KFA
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Weight
2.328081oz
Width
32.8mm
Compliance
RoHS
Compliant
Datasheet
Schurter 4301.6005 Datasheet
Download the complete datasheet for Schurter 4301.6005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

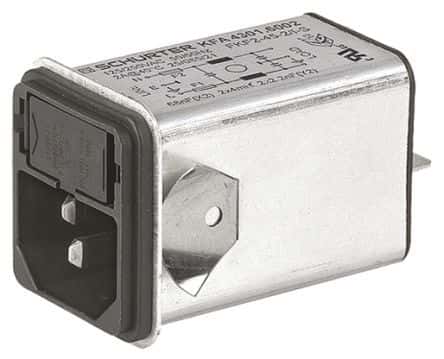

Product Images
