Mains power connector, 10A, 250VAC, male, 3 positions, 2 poles, featuring solder terminal termination and a straight orientation. This shielded connector boasts a thermoplastic body with UL94 V-0 flammability rating, suitable for panel, flange, and screw mounting. Operating within a temperature range of -25°C to 85°C, it is ROHS compliant and carries cULus, ENEC, and CCC approvals.
FrequencyN/A
PackageModule
Current10A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter 4302.5315 technical specifications.
General
Approvals
cULus, ENEC, CCC
Body Material
Thermoplastic
Package/Case
Module
Current
10A
Current Rating
10A
Features
Shielded
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Height
59mm
Lead Free
Lead Free
Length
59mm
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KFB2
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
2.786643oz
Width
30mm
Compliance
RoHS
Compliant
Datasheet
Schurter 4302.5315 Datasheet
Download the complete datasheet for Schurter 4302.5315 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

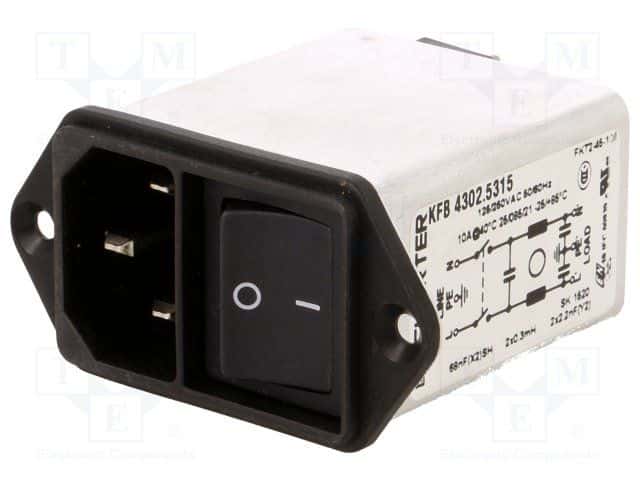

Product Images
