Mains power connector, 10A current rating, 250V AC voltage rating, and 3 positions. Features include a shielded, panel-mount design with solder terminals, a built-in fuse holder for 5x20mm fuses, and a standard filter type with 68nF capacitance and 1MR resistance. Operating temperature range is -25°C to 85°C, with a leakage current of 250uA. This RoHS compliant connector offers IP40 protection and a UL94 V-0 flammability rating.
FrequencyN/A
PackageModule
Current10A
Capacitance68nF
Quick Jump:
Technical Specifications
Schurter 4304.4025 technical specifications.
General
Capacitance
68nF
Package/Case
Module
Current
10A
Current Rating
10A
Depth
55mm
Features
Shielded
Filter Type
STANDARD
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Male
Height
65mm
Lead Free
Lead Free
Leakage Current
250uA
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
FKI
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
4.585615oz
Width
50mm
Compliance
RoHS
Compliant
Datasheet
Schurter 4304.4025 Datasheet
Download the complete datasheet for Schurter 4304.4025 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

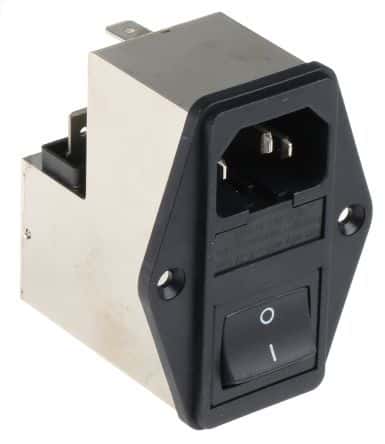

Product Images
