Standard and High-Density Card Edge Connector, 4A at 250VAC, featuring a built-in fuse holder for 5x20mm fuses. This shielded module offers 3 contacts and positions, with quick connect termination. It operates within a temperature range of -25°C to 85°C and boasts UL94 V-0 flammability rating. Panel mounting with flanges is supported, and the connector is IP40 rated. Approvals include cULus and ENEC, with RoHS compliance.
Frequency50 (IEC) Hz, 60 (UL / CSA) Hz
PackageModule
Current4A
Resistance1MR
Quick Jump:
Technical Specifications
Schurter 4304.5023 technical specifications.
General
Approvals
cULus, ENEC
Package/Case
Module
Current
4A
Current Rating
4A
Depth
67mm
Features
Shielded
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Male
Height
65mm
Leakage Current
250uA
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges
Number of Contacts
3
Number of Positions
3
Operating Frequency
50 (IEC) Hz, 60 (UL / CSA) Hz
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Resistance
1MR
RoHS Compliant
Yes
Series
FKID
Termination
Quick Connect
Voltage Rating
250V
DC Rated Voltage
250V
Weight
5.679108oz
Width
50mm
Compliance
RoHS
Compliant
Datasheet
Schurter 4304.5023 Datasheet
Download the complete datasheet for Schurter 4304.5023 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

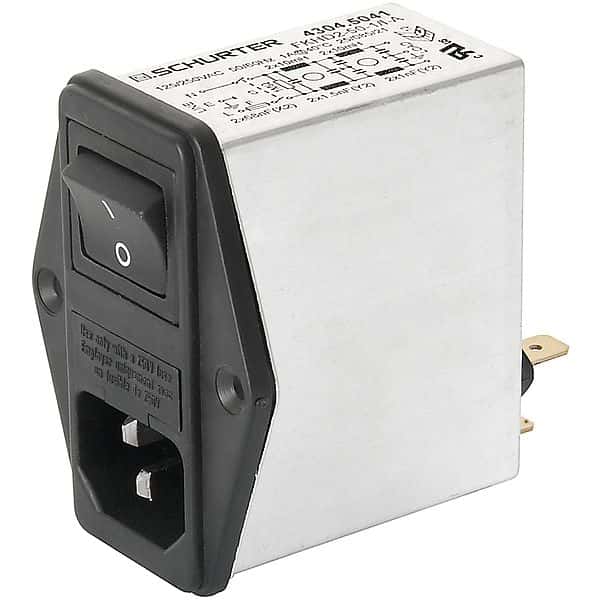

Product Images
