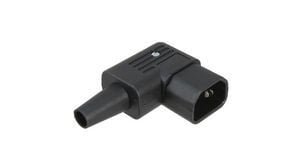

Mains power connector, featuring a male, right-angle, free-hanging configuration with screw terminals for 3 conductors. Rated for 250VAC and 10A continuous current (with a 15A peak capability), this connector operates within a -25°C to 70°C temperature range. Constructed from black thermoplastic with UL94 V-0 flammability, it is RoHS compliant and includes UL, CSA, and VDE approvals. Designed for cable mounting with a maximum wire/cable diameter of 10mm.
Voltage250V
Current15A
Current Rating10A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Schurter 4736.0000 technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Thermoplastic
Color
Black
Current
15A
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Lead Free
Lead Free
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Conductors
3
Number of Positions
3
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
4736
Termination
Screw
Voltage
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
1.234589oz
Wire/Cable Diameter
10mm
Compliance
RoHS
Compliant
Datasheet
Schurter 4736.0000 Datasheet
Download the complete datasheet for Schurter 4736.0000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

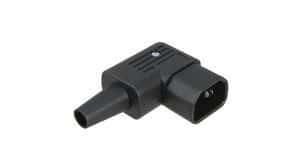

Product Images
