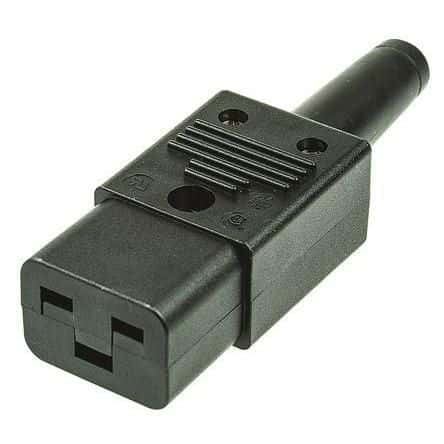

3-position, 3-conductor mains power connector with screw terminal termination. Features a 250VAC voltage rating and a maximum current rating of 21A, with a standard current rating of 16A. Constructed from black thermoplastic with UL94 V-0 flammability rating, this straight, free-hanging plug is designed for cable mounting and supports wire/cable diameters up to 10mm (14AWG). Operating temperature range is -25°C to 70°C, and the component is RoHS compliant.
Current20A
Voltage Rating250V
Current Rating16A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Schurter 4795.0000 technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Thermoplastic
Color
Black
Current
20A
Current Rating
16A
Depth
91mm
Flammability Rating
UL94 V-0
Fuse
No
Gender
Receptacle
Lead Free
Contains Lead
Length
30mm
Max Current Rating
21A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Conductors
3
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
4795
Termination
Screw
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
1.234589oz
Wire/Cable Diameter
10mm
Wire/Cable Gauge
14AWG
Compliance
RoHS
Compliant
Datasheet
Schurter 4795.0000 Datasheet
Download the complete datasheet for Schurter 4795.0000 to view detailed technical specifications.
