Circular DC power connector, male gender, featuring a 2.35mm pin diameter and 3 contacts. This straight, unshielded connector offers silver-plated copper alloy contacts and a black housing. Rated for 12V and 500mA, it operates within a temperature range of -20°C to 70°C. Mounting options include panel, bulkhead, and rear side nut, with solder termination.
Voltage Rating12V
Current Rating500mA
MountingPanel, Bulkhead, Rear Side Nut
Quick Jump:
Technical Specifications
Schurter 4840.2210 technical specifications.
General
Body Color
Black
Color
Black
Contact Material
Copper Alloy
Contact Plating
Silver
Current Rating
500mA
Gender
Male
Housing Color
Black
Insulation Color
Black
Lead Free
Lead Free
Length
12.5mm
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Panel, Bulkhead, Rear Side Nut
Number of Contacts
3
Orientation
Straight
Package Quantity
250
Packaging
Bulk
Pin Diameter
2.35mm
RoHS Compliant
Yes
Series
4840
Shielding
Unshielded
Termination
Solder
Voltage Rating
12V
Weight
0.089596oz
Compliance
RoHS
Compliant
Datasheet
Schurter 4840.2210 Datasheet
Download the complete datasheet for Schurter 4840.2210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

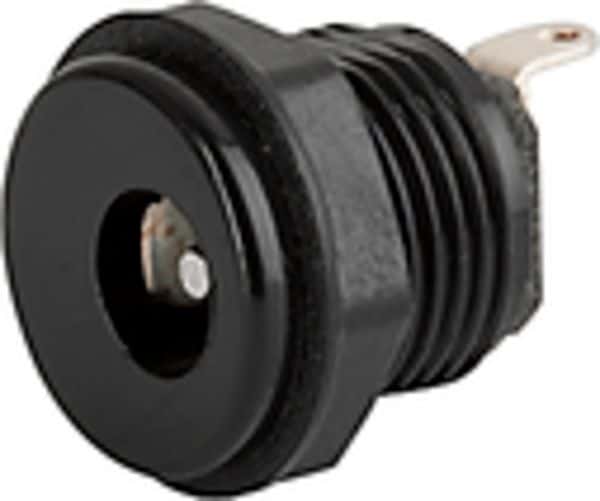

Product Images
