Mains power connector, male, 3-position, 2-pole, featuring a 15A current rating and 250VAC voltage rating. This general purpose connector offers solder terminal termination and a snap-in panel mount design for panel thicknesses up to 3mm. Operating within a temperature range of -25°C to 85°C, it boasts UL94 V-0 flammability rating and IP40 protection. Approvals include CSA and cULus, with RoHS compliance confirmed.
Frequency60Hz
PackageModule
Current15A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter 5110.1543.1 technical specifications.
General
Approvals
CSA, cULus
Package/Case
Module
Current
15A
Current Rating
15A
Depth
55.7mm
Filter Type
GENERAL PURPOSE
Flammability Rating
UL94 V-0
Frequency
60Hz
Fuse
No
Gender
Male
Height
23mm
Inductance
0.1mH
Lead Free
Lead Free
Max Current Rating
15A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Panel Thickness
3mm
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
5110
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
1.234589oz
Width
36mm
Compliance
RoHS
Compliant
Datasheet
Schurter 5110.1543.1 Datasheet
Download the complete datasheet for Schurter 5110.1543.1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

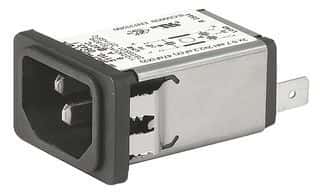

Product Images
