Mains power connector, 4A, 250VAC, male, straight orientation, with screw terminals. Features 3 positions and 3 contacts, shielded design, and UL94 V-0 flammability rating. Operates within a temperature range of -25°C to 85°C. Includes integrated 2mH inductance and 100nF capacitance. Panel mountable with flanges and screw termination. RoHS compliant.
FrequencyN/A
PackageModule
Current4A
Capacitance100nF
Quick Jump:
Technical Specifications
Schurter 5120.0003.0 technical specifications.
General
Approvals
cULus, ENEC, CCC
Capacitance
100nF
Package/Case
Module
Current
4A
Current Rating
4A
Depth
54.5mm
Features
Shielded
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Height
24.6mm
Inductance
2mH
Lead Free
Lead Free
Max Current Rating
4A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
RoHS Compliant
Yes
Series
5120
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
1.481506oz
Width
48.6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 5120.0003.0 Datasheet
Download the complete datasheet for Schurter 5120.0003.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

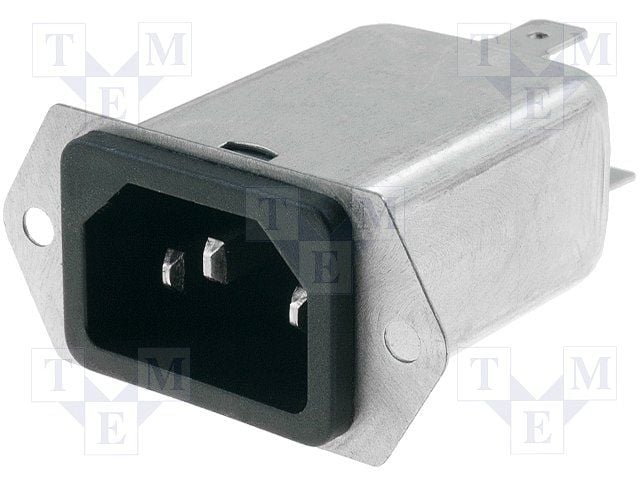

Product Images
