Standard IEC filter module with 3 positions and 2 poles, featuring a 15A current rating and 250VAC voltage rating. This shielded, black component offers quick connect termination and panel mounting via flanges with screw fixings, supporting panel thicknesses up to 2.5mm. It includes a 100nF capacitance, 0.1mH inductance, 1MR resistance, and a leakage current of 500uA. Operating within a temperature range of -25°C to 85°C, it is UL94 V-0 flammability rated and RoHS compliant.
FrequencyN/A
PackageModule
Current15A
Capacitance100nF
Quick Jump:
Technical Specifications
Schurter 5120.1007.0 technical specifications.
General
Capacitance
100nF
Package/Case
Module
Color
Black
Current
15A
Current Rating
15A
Depth
54.5mm
Features
Shielded
Filter Type
STANDARD
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Height
24.6mm
Inductance
0.1mH
Lead Free
Lead Free
Leakage Current
500uA
Max Current Rating
15A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Panel Thickness
2.5mm
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
5120
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
1.481506oz
Width
48.6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 5120.1007.0 Datasheet
Download the complete datasheet for Schurter 5120.1007.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

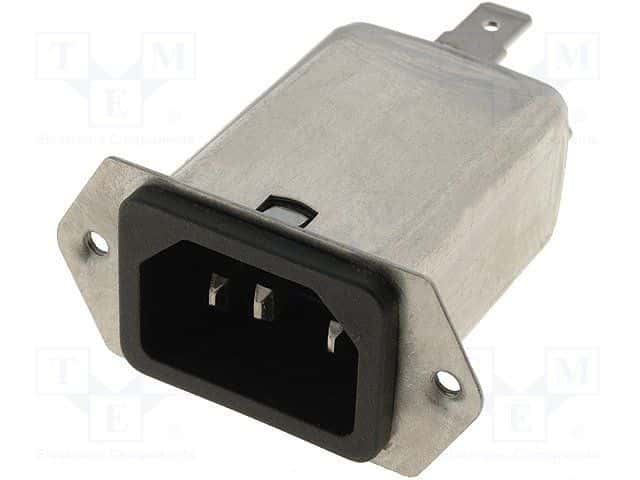

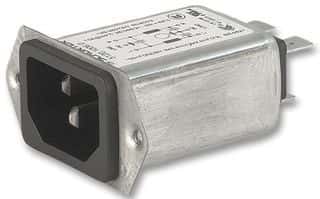

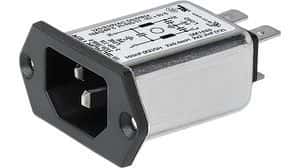

Product Images
