AC power cord assembly featuring a NEMA 5-15P plug to an IEC C19 connector. This 3-conductor, 3-position cable assembly is rated for 16A and 250V, with a maximum operating current of 15A. Constructed with 14AWG wire, it operates within a temperature range of -40°C to 60°C. The straight-oriented, black cable measures 8.2 feet in length and is RoHS compliant.
Voltage Rating250V
Current Rating16A
Quick Jump:
Technical Specifications
Schurter 6009.5195 technical specifications.
General
Approvals
CUL
Color
Black
Current Rating
16A
Gender
Male, Female
Length
8.2foot
Max Current Rating
15A
Max Operating Temperature
60°C
Min Operating Temperature
-40°C
Number of Conductors
3
Number of Positions
3
Orientation
Straight
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage Rating
250V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
1lb
Wire/Cable Gauge
14AWG
Wire/Cable Type
Power Cord
Compliance
RoHS
Compliant
Datasheet
Schurter 6009.5195 Datasheet
Download the complete datasheet for Schurter 6009.5195 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

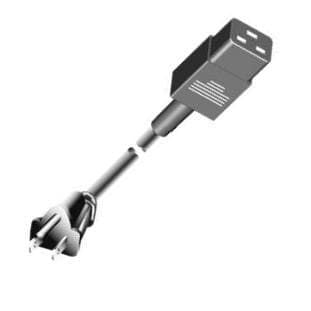

Product Images
