Mains power connector, 3-position, male, straight orientation, featuring a thermoplastic black body with UL94 V-0 flammability rating. This connector supports 250V AC/DC voltage and offers a current rating of 10A, with a maximum current capacity of 15A. Termination is via quick connect, and it is designed for panel snap-in mounting. RoHS compliant and rated IP30, it operates within a temperature range of -25°C to 70°C.
Voltage250V
Current15A
Voltage Rating250V
Current Rating10A
Quick Jump:
Technical Specifications
Schurter 6100.4325 technical specifications.
General
Body Material
Thermoplastic
Color
Black
Current
15A
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Lead Free
Lead Free
Max Current Rating
15A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Positions
3
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Ratings
IP30
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
6100-4
Termination
Quick Connect
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.268082oz
Compliance
RoHS
Compliant
Datasheet
Schurter 6100.4325 Datasheet
Download the complete datasheet for Schurter 6100.4325 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

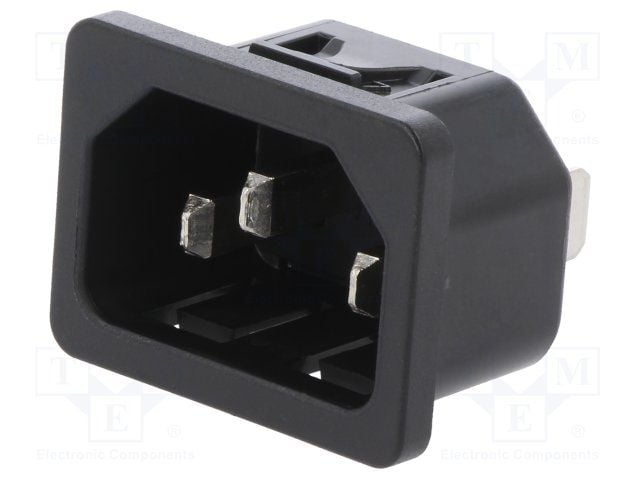

Product Images
