3-position male mains power connector with straight orientation and solder terminals. Rated for 2.5A and 250VAC, featuring a UL94 V-0 flammability rating. Designed for panel mounting with flanges and screws, operating between -25°C and 70°C. IP20 rated and RoHS compliant.
Voltage250V
Current2.5A
Voltage Rating250V
Current Rating2.5A
Quick Jump:
Technical Specifications
Schurter 6160.0001 technical specifications.
General
Color
Black
Current
2.5A
Current Rating
2.5A
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Max Current Rating
2.5A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Positions
3
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ratings
IP20
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
2561
Termination
Solder
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.244449oz
Compliance
RoHS
Compliant
Datasheet
Schurter 6160.0001 Datasheet
Download the complete datasheet for Schurter 6160.0001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

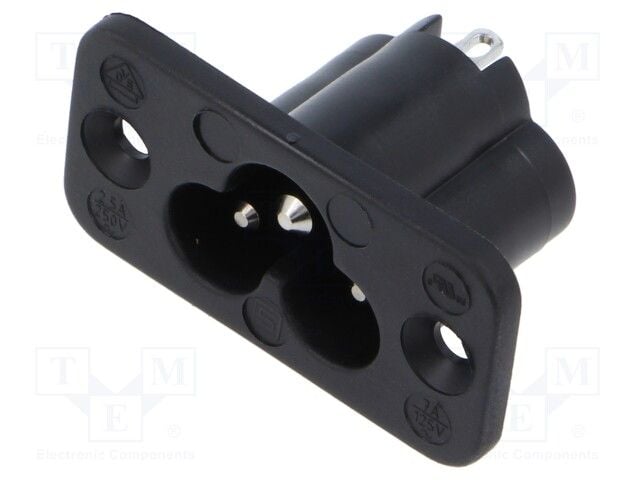

Product Images
