Fast-acting cartridge fuse, 3A current rating and 125V voltage rating, featuring a 7x2mm ceramic body with SMD/SMT mounting. Contacts are copper with copper and tin plating, and terminals are tin. This fuse is RoHS compliant, lead-free, and operates within a temperature range of -55°C to 125°C, with cURus, CSA, and cULus approvals.
PackageSMD/SMT
Voltage Rating125V
Current Rating3A
MountingHolder
Quick Jump:
Technical Specifications
Schurter 7010.9850.63 technical specifications.
General
Approvals
cURus, CSA, cULus
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Material
Copper
Contact Plating
Copper, Tin
Current Rating
3A
Diameter
2mm
Fuse Current
3A
Fuse Size
7 X 2mm
Height
2mm
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Holder
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
172876
Terminal Material
Tin
Termination
Clip
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
0.002469oz
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Schurter 7010.9850.63 Datasheet
Download the complete datasheet for Schurter 7010.9850.63 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

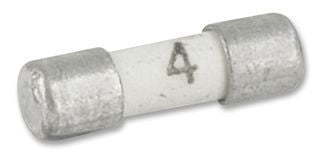

Product Images
