3-pole, 250VAC, 20A male mains power connector module with solder terminals. Features a black thermoplastic body, UL94 V-0 flammability rating, and IP40 protection. Designed for panel mounting with flanges and screws, this shielded connector operates between -25°C and 85°C. Approvals include VDE, cULus, UL, CSA, IEC, and EN.
FrequencyN/A
PackageModule
Current20A
Resistance1MR
Quick Jump:
Technical Specifications
Schurter C20F.0002 technical specifications.
General
Application(s)
AC
Approvals
VDE, cULus, UL, CSA, IEC, EN
Body Material
Thermoplastic
Package/Case
Module
Color
Black
Contact Type
Pin
Current
20A
Current Rating
20A
Depth
78.8mm
Features
Shielded
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Height
30mm
Lead Free
Lead Free
Max Current Rating
20A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Primary Type
MODULE
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
C20F
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
3.703766oz
Width
53mm
Compliance
RoHS
Compliant
Datasheet
Schurter C20F.0002 Datasheet
Download the complete datasheet for Schurter C20F.0002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

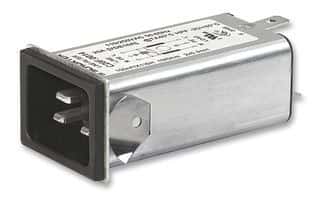

Product Images
