Mains power connector featuring a straight, male orientation with a 3-position, 2-pole configuration. This panel-mount socket offers a 6A current rating, 250VAC voltage rating, and accommodates 5 x 20 mm or 6.3 x 32 mm fuses. Constructed with a UL94 V-0 flammability rating and lead-free materials, it operates between -25°C and 85°C. Approvals include cULus and ENEC, with an IP40 rating for protection.
FrequencyN/A
PackageModule
Current6A
Resistance1MR
Quick Jump:
Technical Specifications
Schurter CDE4.4101.151 technical specifications.
General
Approvals
cULus, ENEC
Package/Case
Module
Current
6A
Current Rating
10A
Depth
69mm
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 x 20 mm, 6.3 x 32 mm
Gender
Male
Height
83.5mm
Lead Free
Lead Free
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
CD
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
2.892465oz
Width
30mm
Compliance
RoHS
Compliant
Datasheet
Schurter CDE4.4101.151 Datasheet
Download the complete datasheet for Schurter CDE4.4101.151 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

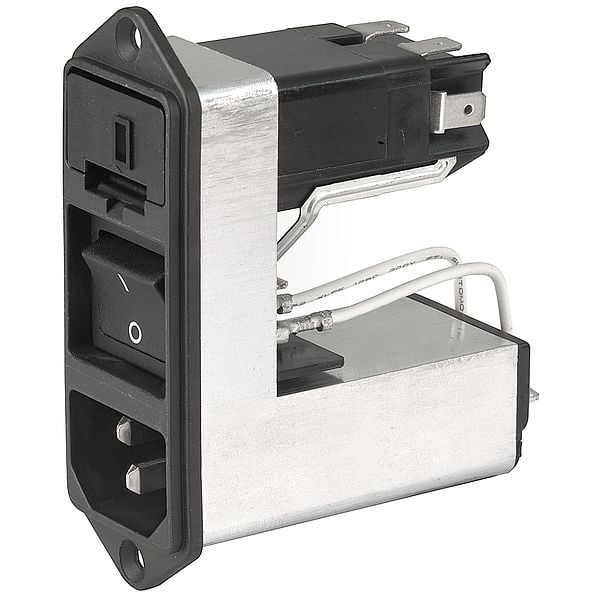

Product Images
