3-position, right-angle card edge connector with solder termination. Features a 2.5A current rating and 250V AC voltage rating, suitable for PCB mounting. This module offers IP40 protection and is UL94 V-0 flammability rated. Approvals include VDE, cULus, and CCC, with lead-free and RoHS compliance.
PackageModule
Current6A
Voltage Rating250V
Current Rating2.5A
Quick Jump:
Technical Specifications
Schurter CMF3.1112.12 technical specifications.
General
Approvals
VDE, cULus, CCC
Package/Case
Module
Current
6A
Current Rating
2.5A
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Through Hole, Panel, Snap in
Number of Contacts
3
Number of Positions
3
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Panel Thickness
0.079inch
Ratings
IP40
RoHS Compliant
Yes
Series
CMF3
Termination
Solder
Throw Configuration
SPST
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.490308oz
Compliance
RoHS
Compliant
Datasheet
Schurter CMF3.1112.12 Datasheet
Download the complete datasheet for Schurter CMF3.1112.12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

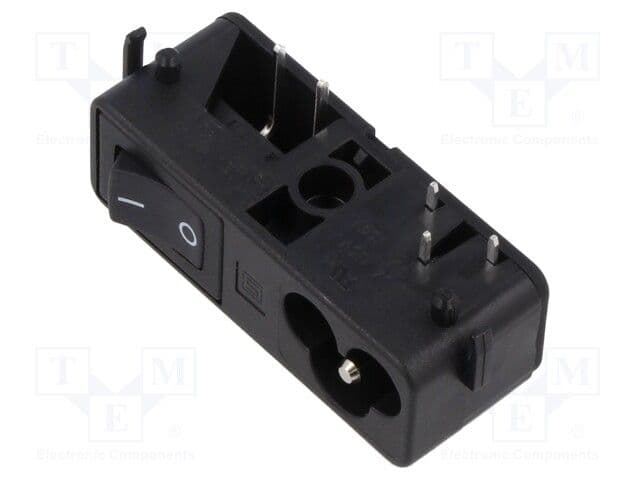

Product Images
