Mains power connector, male, 3-position, 1-pole, featuring a 4A current rating and 250VAC voltage rating. This shielded connector offers solder terminal termination and panel mount capability with flanges and screw mounting. Operating within a temperature range of -25°C to 85°C, it boasts UL94 V-0 flammability and IP40 ratings. Approvals include cULus, ENEC, and CQC, with a lead-free and RoHS compliant design.
FrequencyN/A
PackageModule
Current4A
Resistance1MR
Quick Jump:
Technical Specifications
Schurter DC12.3102.003 technical specifications.
General
Approvals
cULus, ENEC, CQC
Package/Case
Module
Current
4A
Current Rating
4A
Features
Shielded
Filter Type
STANDARD
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Inductance
1.5mH
Lead Free
Lead Free
Max Current Rating
4A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
1
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
DC12
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
2.257534oz
Compliance
RoHS
Compliant
Datasheet
Schurter DC12.3102.003 Datasheet
Download the complete datasheet for Schurter DC12.3102.003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

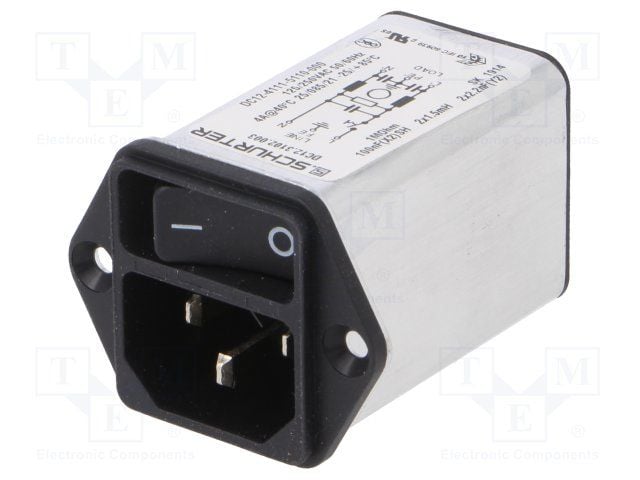

Product Images
