Mains power connector, 6A current rating, 250V AC maximum voltage. Features a male gender, 3 contacts, and 2 poles with 3 positions. Designed for panel mounting with flanges and screw options, offering solder terminal termination. Shielded construction with UL94 V-0 flammability rating and IP40 protection. Operates within a temperature range of -25°C to 85°C.
PackageModule
Current6A
Resistance1MR
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter DC12.4102.001 technical specifications.
General
Package/Case
Module
Current
6A
Current Rating
6A
Depth
60.5mm
Features
Shielded
Filter Type
GENERAL PURPOSE
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Height
34.4mm
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
2
Number of Positions
3
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
DC12
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Weight
2.257534oz
Width
44.3mm
Compliance
RoHS
Compliant
Datasheet
Schurter DC12.4102.001 Datasheet
Download the complete datasheet for Schurter DC12.4102.001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

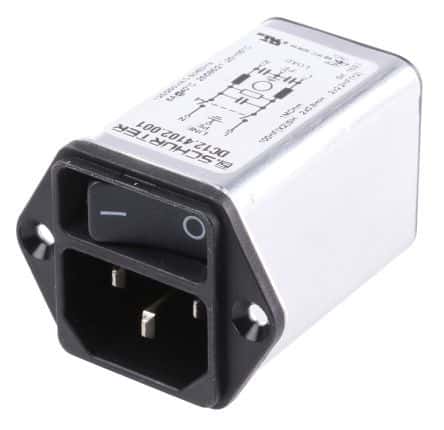

Product Images
