Mains power connector featuring a male, straight orientation with solder terminal termination. This 3-pole, 2-position connector supports 10A and 11A current ratings, with a maximum AC voltage rating of 250V and a DC rated voltage of 250V. Constructed with UL94 V-0 flammability rating and RoHS compliance, it offers through-hole, panel, flange, and screw mounting options. Approvals include cULus, and it operates within a temperature range of -25°C to 70°C.
FrequencyN/A
PackageModule
Current11A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter DC21.0023.1111 technical specifications.
General
Approvals
cULus
Package/Case
Module
Current
11A
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Illumination Color
Red
Lead Free
Lead Free
Max Current Rating
15A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Through Hole, Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
40
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DC21
Termination
Solder
Throw Configuration
DPST
Type
Switch
Voltage Rating
250V
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Weight
1oz
Compliance
RoHS
Compliant
Datasheet
Schurter DC21.0023.1111 Datasheet
Download the complete datasheet for Schurter DC21.0023.1111 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

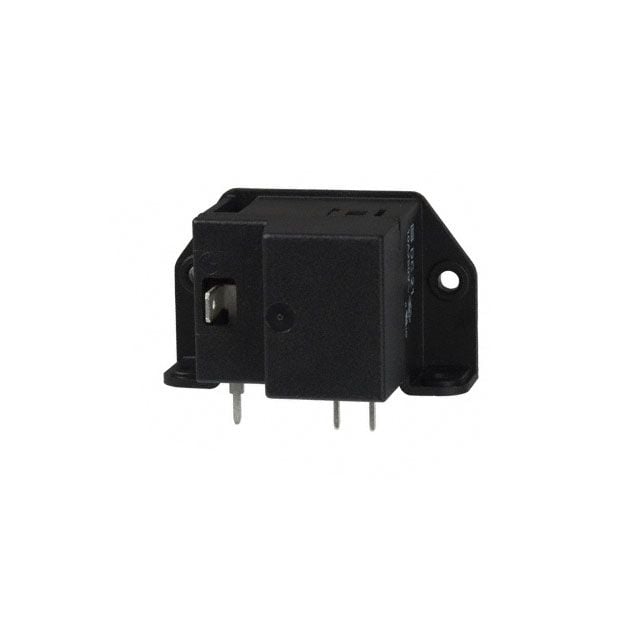

Product Images
