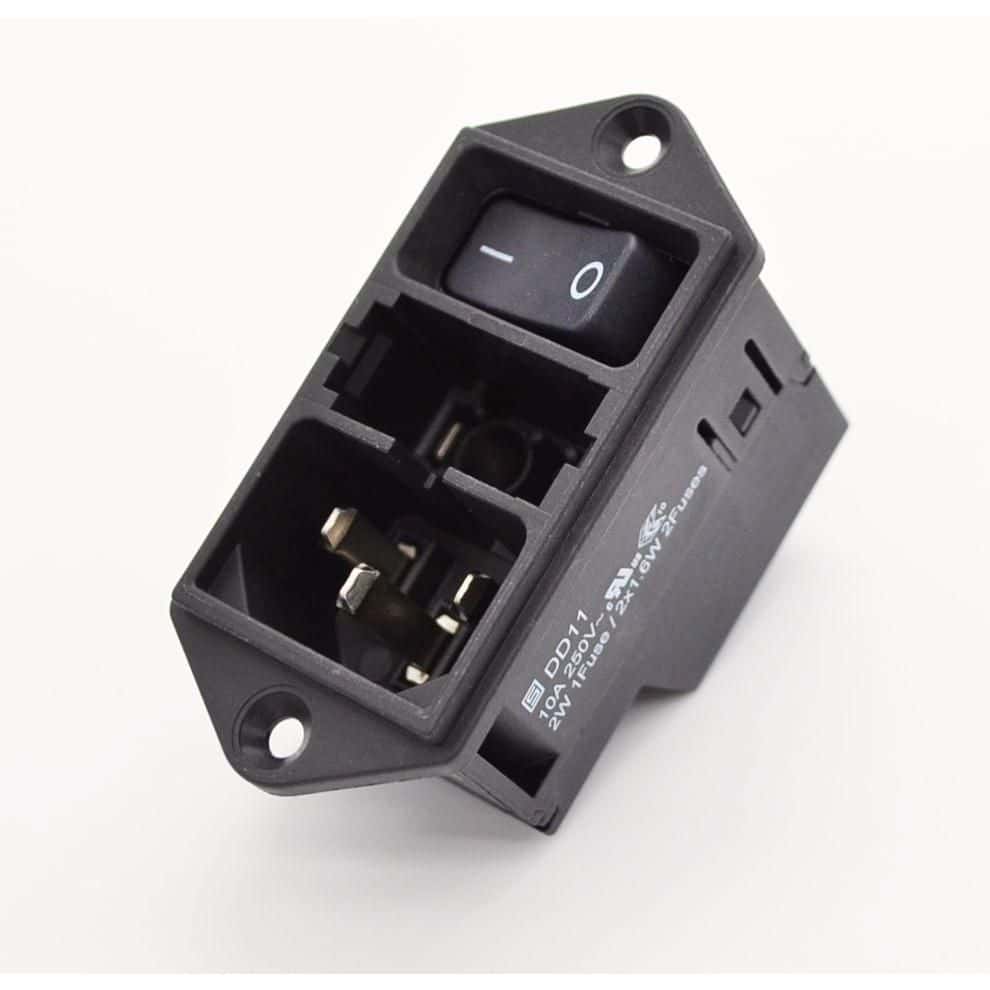

Mains power connector featuring a 3-position, 3-contact configuration with a straight, male receptacle. Rated for 250VAC and 10A maximum current, it includes a fuse holder for 5 x 20mm fuses. Constructed from black thermoplastic with a UL94 V-0 flammability rating, this panel-mount module offers IP40 protection and operates between -25°C and 85°C. Termination is via quick connect.
FrequencyN/A
PackageModule
Current7A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter DD11.0121.1111 technical specifications.
General
Package/Case
Module
Color
Black
Current
7A
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Receptacle
Lead Free
Lead Free
Material
Thermoplastic
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
40
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DD11
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
1.234589oz
Width
33mm
Compliance
RoHS
Compliant
