Filtered power entry module with 3 positions, rated for 250VAC and 10A. Features a 2-pole configuration, integrated switch, and fuse holder for 5 x 20mm fuses. Constructed from UL94 V-0 rated thermoplastic, this shielded module offers panel mounting with flanges and screw options. Includes quick connect termination and operates within a temperature range of -25°C to 85°C.
FrequencyN/A
PackageModule
Resistance1MR
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter DD12.9121.111 technical specifications.
General
Package/Case
Module
Current Rating
10A
Depth
60.9mm
Features
Shielded
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Male
Height
31.5mm
Inductance
300uH
Length
66mm
Material
Thermoplastic
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
DD12
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
3oz
Width
66mm
Compliance
RoHS
Compliant
Datasheet
Schurter DD12.9121.111 Datasheet
Download the complete datasheet for Schurter DD12.9121.111 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

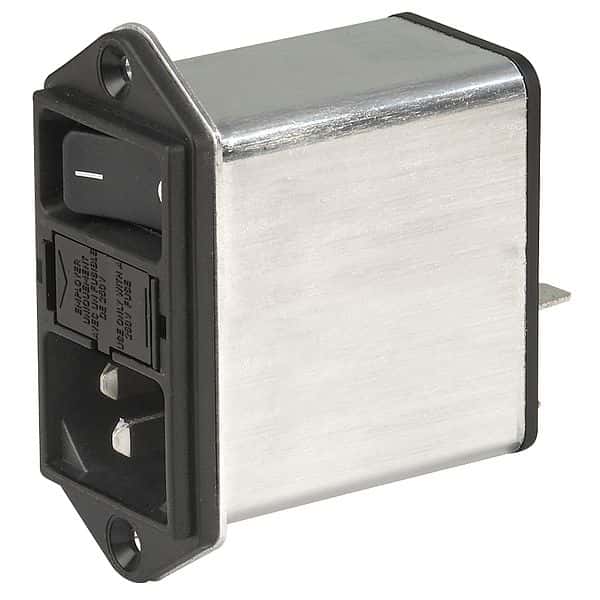

Product Images
