3-pole, right-angle mains power connector with a 15A max current rating and 250VAC voltage rating. Features solder terminals and a black thermoplastic body with UL94 V-0 flammability. Designed for through-hole, panel, and PCB mounting, this RoHS compliant connector operates between -25°C and 70°C and holds UL, CSA, IEC, and EN approvals.
Current15A
Voltage Rating250V
Current Rating10A
MountingThrough Hole, Panel, Flanges, PCB, Screw
Quick Jump:
Technical Specifications
Schurter GSP1.9113.1 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Body Material
Thermoplastic
Color
Black
Contact Type
Pin
Current
15A
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Lead Free
Lead Free
Max Current Rating
15A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Through Hole, Panel, Flanges, PCB, Screw
Number of Contacts
3
Number of Poles
3
Number of Positions
3
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Pitch
7mm
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GSP1
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.444452oz
Compliance
RoHS
Compliant
Datasheet
Schurter GSP1.9113.1 Datasheet
Download the complete datasheet for Schurter GSP1.9113.1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

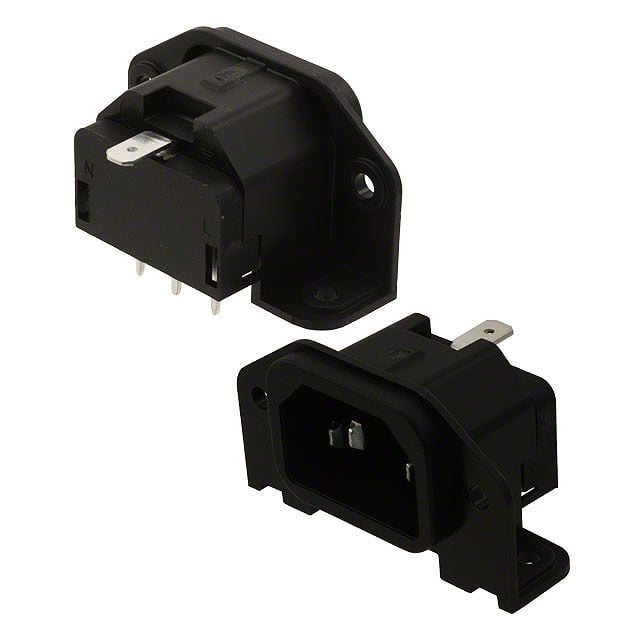

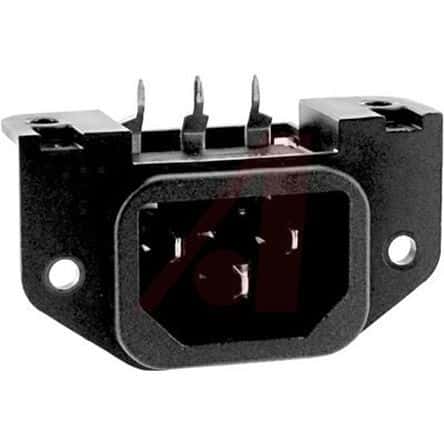

Product Images
