Schurter
GSP4.010C.11
Conn Power M 3 POS Solder Lug/Solder RA Panel Mount/Thru-Hole 3 Terminal 1 Port Box
Voltage Rating250V
Current Rating20A
MountingPanel
Quick Jump:
Technical Specifications
Schurter GSP4.010C.11 technical specifications.
General
Current Rating
20A
Depth
15mm
Flammability Rating
UL94 V-0
Fuse
No
Height
26.9mm
Length
34.9mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel
Number of Contacts
3
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
GSP4
Termination
Solder
Voltage Rating
250V
Weight
0.54463oz
Width
15mm
Compliance
RoHS
Compliant
Datasheet
Schurter GSP4.010C.11 Datasheet
Download the complete datasheet for Schurter GSP4.010C.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

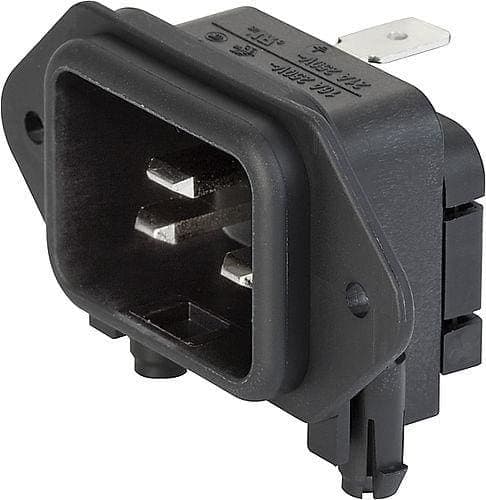

Product Images
