Standard Card Edge Connector with integrated fuse, featuring a 3-position, 3-contact male configuration. This straight, panel-mount module offers a 10A current rating and a 250V AC voltage rating, with Tin contact plating. Designed for quick connect termination, it operates within a temperature range of -25°C to 70°C and boasts a UL94 V-0 flammability rating. The connector is RoHS compliant and IP40 rated.
FrequencyN/A
PackageModule
Voltage250V
Current10A
Quick Jump:
Technical Specifications
Schurter KD14.4101.105 technical specifications.
General
Package/Case
Module
Contact Plating
Tin
Current
10A
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse
Yes
Gender
Male
Lead Free
Lead Free
Length
69mm
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Plating Thickness
1.5mm
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KD
Termination
Quick Connect
Throw Configuration
DPST
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Weight
1.410958oz
Width
30mm
Compliance
RoHS
Compliant
Datasheet
Schurter KD14.4101.105 Datasheet
Download the complete datasheet for Schurter KD14.4101.105 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

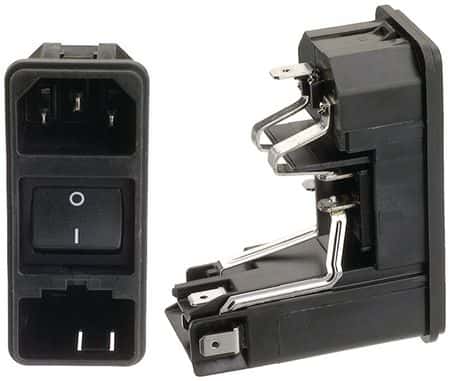

Product Images
