Mains power connector, 10A, 250VAC, male, 3 positions, DPST, solder terminal, socket. Features a thermoplastic body with UL94 V-0 flammability rating and tin contact plating. Rated for 10A and 250V AC/DC, operating between -25°C and 70°C. Panel mountable with snap-in capability for up to 2.5mm thick panels. Includes a 10A fuse and IP40 rating. RoHS compliant.
FrequencyN/A
PackageModule
Voltage250V
Current10A
Quick Jump:
Technical Specifications
Schurter KM00.1205.11 technical specifications.
General
Application(s)
AC
Approvals
VDE, cULus
Body Material
Thermoplastic
Package/Case
Module
Color
Black
Contact Plating
Tin
Current
10A
Current Rating
10A
Depth
32.85mm
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Current
10A
Gender
Male
Lead Free
Lead Free
Length
30.5mm
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Panel Thickness
2.5mm
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KM
Termination
Quick Connect
Throw Configuration
DPST
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
1.058219oz
Compliance
RoHS
Compliant
Datasheet
Schurter KM00.1205.11 Datasheet
Download the complete datasheet for Schurter KM00.1205.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

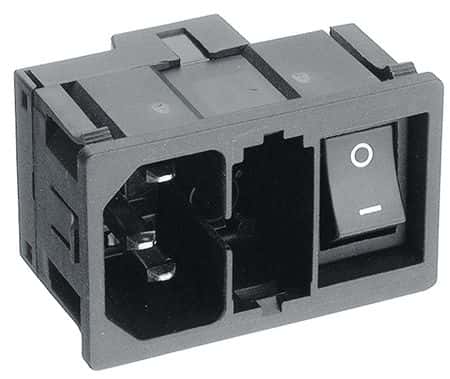

Product Images
