Mains power connector featuring a 3-position male socket with solder terminal termination. Rated for 6A and 250VAC, this shielded connector offers a panel mount, snap-in design suitable for 2.5mm panel thickness. It includes a fuse holder for 5 x 20mm fuses and operates within a temperature range of -25°C to 85°C. The connector is UL94 V-0 flammability rated and IP40 protected, with a straight orientation.
FrequencyN/A
PackageModule
Current6A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter KMF1.1261.11 technical specifications.
General
Application(s)
AC
Package/Case
Module
Current
6A
Current Rating
6A
Depth
40.35mm
Features
Shielded
Filter Type
GENERAL PURPOSE
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Male
Height
25.7mm
Lead Free
Lead Free
Length
50mm
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Panel Thickness
2.5mm
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KMF
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
2.04589oz
Width
30.5mm
Compliance
RoHS
Compliant
Datasheet
Schurter KMF1.1261.11 Datasheet
Download the complete datasheet for Schurter KMF1.1261.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

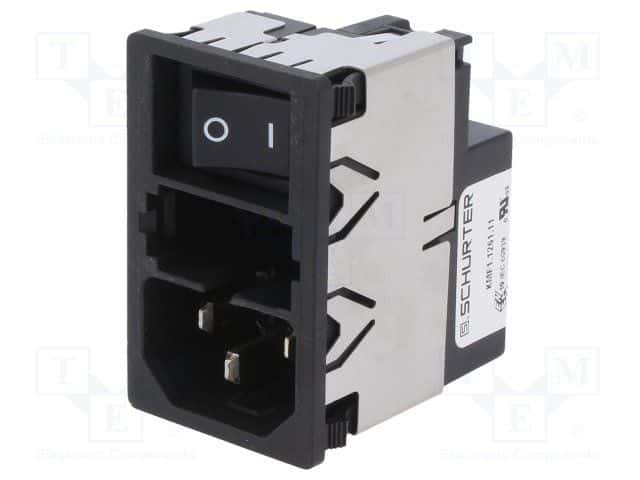

Product Images
