PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Seoul Semiconductor STW9Q14C-T0U0-HA technical specifications.
General
Package/Case
SMD/SMT
Color
White
Color Rendering Index (CRI)
90
Correlated Color Temperature (CCT)
2700K (2600K ~ 2900K)
Forward Current
100mA
Height
0.75mm
Illumination Color
White
Length
5.6mm
Lens Style
Colored, Rectangular
Luminous Flux
30lm
Max Current Rating
160mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of LEDs
1
Package Quantity
3500
Packaging
Tape and Reel
Radiation Hardening
No
Series
Acrich
Thermal Resistance of Package
18°C/W
Viewing Angle
120°
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Seoul Semiconductor STW9Q14C-T0U0-HA Datasheet
Download the complete datasheet for Seoul Semiconductor STW9Q14C-T0U0-HA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

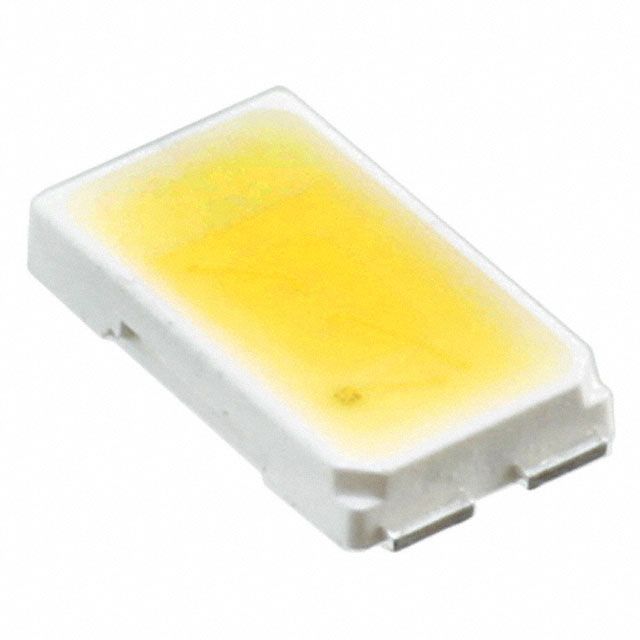

Product Images
