Siemens
3RF23101AA02
SIEMENS 3RF23101AA02 Solid State Relay, SPST-NO, 10.5 A, Panel, Screw, 24 VAC, 230 VAC
MountingDIN Rail, Panel
Quick Jump:
Technical Specifications
Siemens 3RF23101AA02 technical specifications.
General
Contact Current Rating
10A
Depth
94mm
Height
100mm
Isolation Voltage
600V
Length
22.5mm
Load Current
10.5A
Max Operating Temperature
60°C
Min Operating Temperature
-25°C
Max Supply Voltage (AC)
230V
Min Supply Voltage (AC)
24V
Max Voltage Rating (AC)
230V
Mount
DIN Rail, Panel
Number of Poles
1
Ratings
IP20
Reach SVHC Compliant
No
Series
3RF2310
Termination
Screw
Throw Configuration
SPST
Width
22.5mm
Compliance
RoHS
Not Compliant
Datasheet
Siemens 3RF23101AA02 Datasheet
Download the complete datasheet for Siemens 3RF23101AA02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

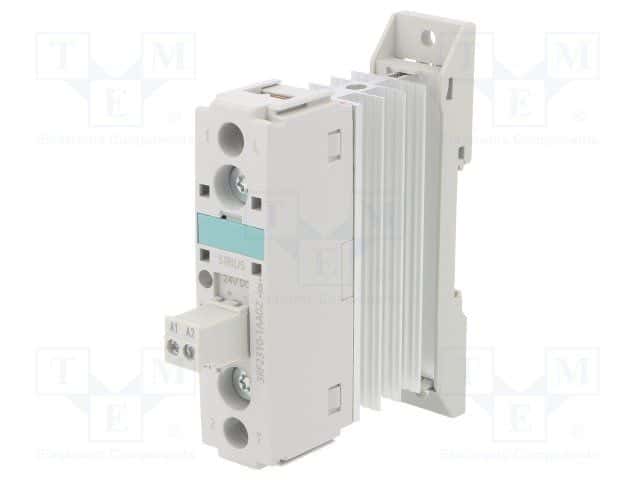

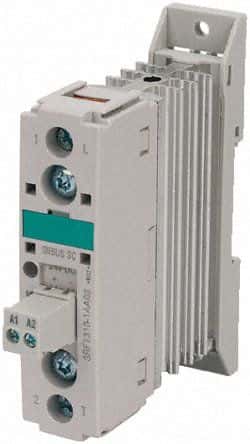

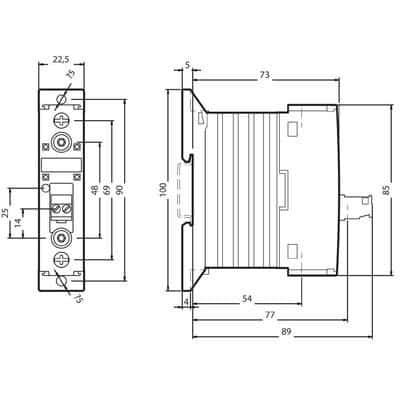

Product Images
