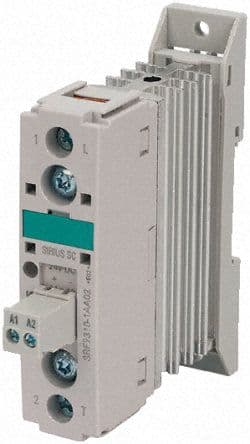

This terminal block is designed for industrial applications and features a current rating of 30A and a voltage rating of 460V AC. It has a maximum operating temperature of 60°C and a minimum operating temperature of -25°C. The block is rated for IP20 and has a 600V isolation voltage. It is available in a 460 package and can be mounted on a DIN rail or panel using screws.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 3RF23301AA04 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE, GOST |
| Package/Case | 460 |
| Contact Current Rating | 30A |
| Current Rating | 30A |

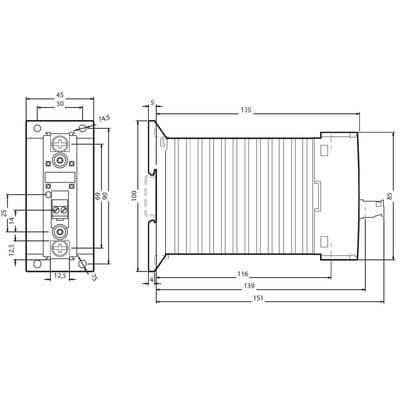

| Depth | 140.5mm |
| Height | 100mm |
| Isolation Voltage | 600V |
| Length | 45mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Mount | DIN Rail, Panel |
| Number of Poles | 1 |
| Ratings | IP20 |
| Termination | Screw |
| Voltage Rating (AC) | 460V |
| Width | 1.772inch |
| RoHS | Not Compliant |
