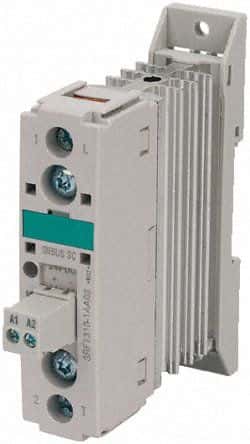

Solid-state contactor for industrial automation, rated for 30A RMS current and 600V isolation. Features a 24-230V AC operating voltage range and a 30V DC max output voltage. Designed for panel or DIN rail mounting with screw termination. Approvals include UL, CSA, CE, and GOST, with an operating temperature range of -25°C to 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 3RF23301BA02 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE, GOST |
| Contact Current Rating | 30A |
| Current Rating | 30A |
| Depth | 140.5mm |
| Height | 100mm |
| Isolation Voltage | 600V |
| Length | 45mm |
| Load Current | 30A |
| Max Input Voltage | 230V |
| Min Input Voltage | 24V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Output Voltage | 30V |
| Max Supply Voltage (AC) | 230V |
| Min Supply Voltage (AC) | 24V |
| Max Supply Voltage | 230V |
| Min Supply Voltage | 24V |
| Mount | Panel, DIN Rail |
| Number of Poles | 1 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 30A |
| Series | 3RF23 |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 230V |
| Width | 1.772inch |
| RoHS | Compliant |
