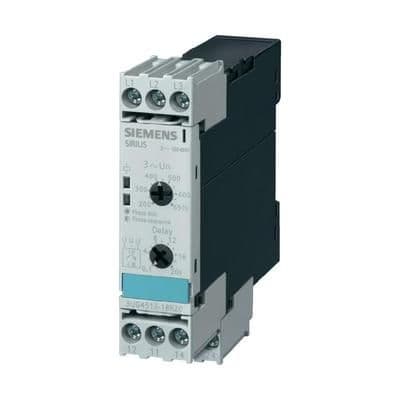

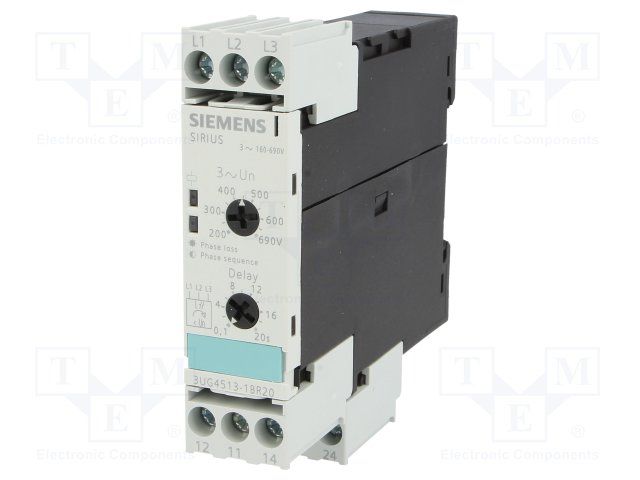

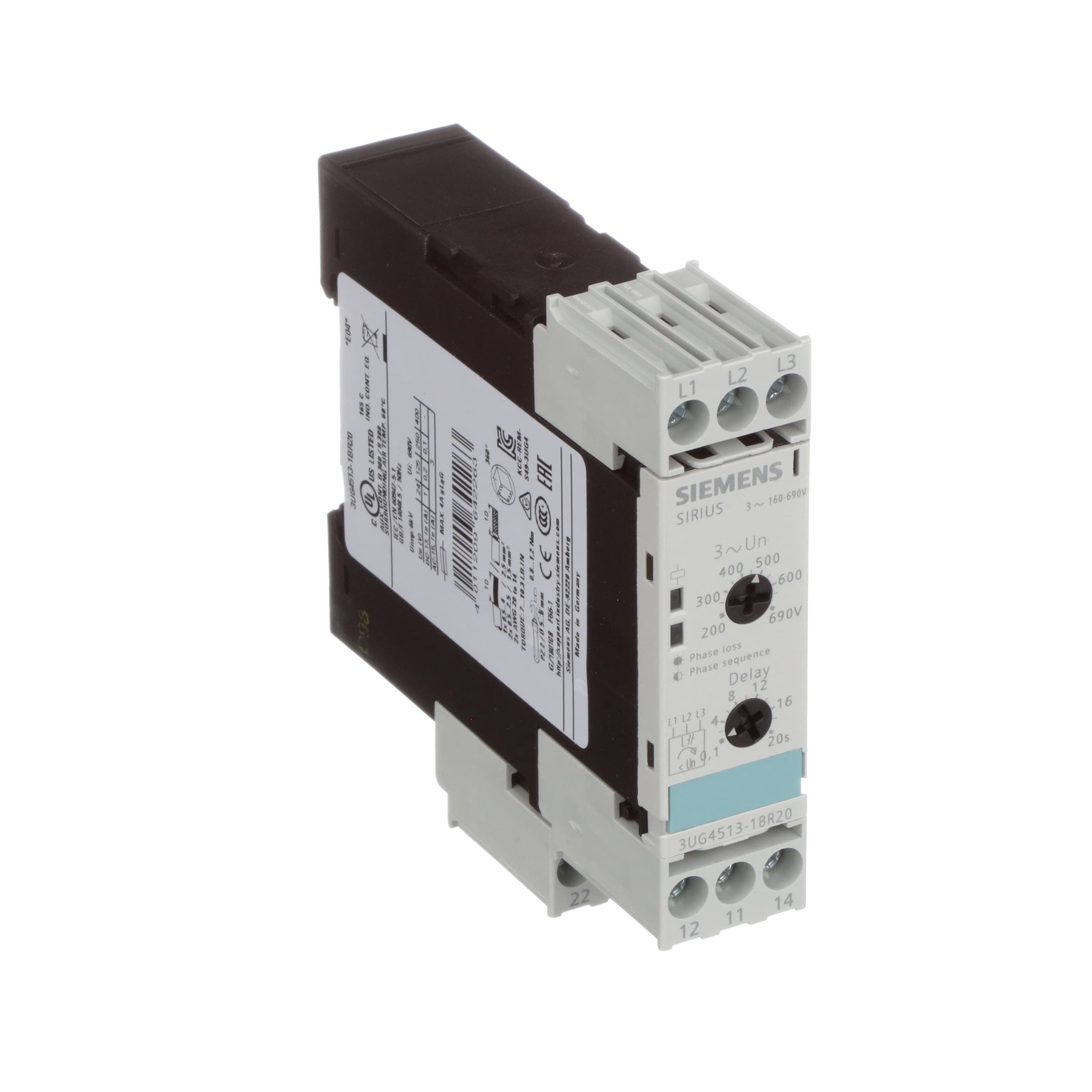

The 3UG4513-1BR20 is a 2-changeover contactor with a load current of 5A and a maximum voltage rating of 160V. It operates at an operating supply voltage of 690V AC and measures 110mm in height, 91mm in length, and 22.5mm in width. This contactor is designed for use in industrial automation and control applications, specifically in pneumatics and fluid power systems.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 3UG4513-1BR20 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Type | 2 change-overs |
| Height | 110mm |
| Length | 91mm |
| Load Current | 5A |
| Max Supply Voltage (AC) | 690V |
| Min Supply Voltage (AC) | 690V |
| Max Voltage Rating (AC) | 160V |
| Operating Supply Voltage | 690V |
| Reach SVHC Compliant | No |
| Throw Configuration | SPST |
| Width | 22.5mm |
| RoHS | Compliant |
Download the complete datasheet for Siemens 3UG4513-1BR20 to view detailed technical specifications.
