Siemens
6AV6647-0AB11-3AX0
Siemens Backlit LCD HMI Terminal, Membrane Keyboard, 1 port, 24 V dc Supply, 214 x 158 x 50.2 mm
Storage5.7inch
MountingPanel
Quick Jump:
Technical Specifications
Siemens 6AV6647-0AB11-3AX0 technical specifications.
General
Density
32KB
Depth
50.2mm
Display Type
LCD
Length
214mm
Manufacturer Series
KTP 600
Max Operating Temperature
50°C
Min Operating Temperature
0°C
Max Supply Voltage (DC)
28.8V
Min Supply Voltage (DC)
19.2V
Mount
Panel
Number of Ports
1
Operating Supply Voltage
24V
Port Type
ETHERNET
Ratings
IP65
Reach SVHC Compliant
No
Resolution (height)
240pixel
Resolution (width)
320pixel
Size
5.7inch
Width
158mm
Compliance
RoHS
Compliant
Datasheet
Siemens 6AV6647-0AB11-3AX0 Datasheet
Download the complete datasheet for Siemens 6AV6647-0AB11-3AX0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

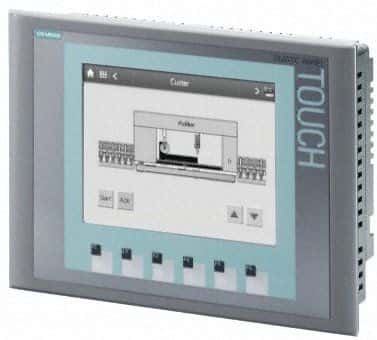

Product Images
