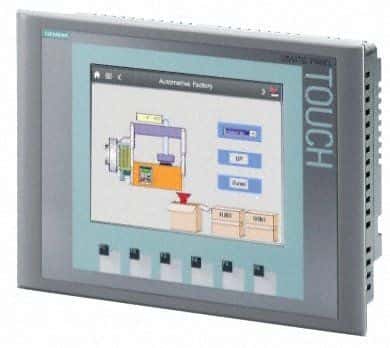

The 5.7inch 320x240 LCD display features a density of 32KB and operates within a temperature range of 0°C to 50°C. It is designed for use with a 24V supply voltage and is rated for IP65. The display is mounted on a panel and has a size of 5.7inch. It supports Ethernet, RS-485, and touch interfaces.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 6AV6647-0AD11-3AX0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Density | 32KB |
| Depth | 50.2mm |
| Display Type | LCD |
| Height | 158mm |
| Interface | Ethernet, RS-485, Touch |
| Length | 214mm |
| Manufacturer Series | KTP 600 |
| Max Operating Temperature | 50°C |
| Max Supply Voltage (DC) | 28.8V |
| Memory Size | 512KB |
| Min Operating Temperature | 0°C |
| Min Supply Voltage (DC) | 19.2V |
| Mount | Panel |
| Operating Supply Voltage | 24V |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| Resolution (height) | 240pixel |
| Resolution (width) | 320pixel |
| Size | 5.7inch |
| Width | 214mm |
| RoHS | Compliant |
