Signal-Construct
SKGD05202
Flush Indicator Panel Mount, 5mm Mounting Hole Size, Green LED, Solder Tab Termination, 3 mm Lamp Size
Voltage Rating14V
Current Rating10mA
MountingPanel
Quick Jump:
Technical Specifications
Signal-Construct SKGD05202 technical specifications.
General
Color
Green
Current Rating
10mA
Length
25.4mm
Material
PC, Polycarbonate
Mount
Panel
RoHS Compliant
Yes
Shape
Round
Termination
Solder
Voltage Rating
14V
Compliance
RoHS
Compliant
Datasheet
Signal-Construct SKGD05202 Datasheet
Download the complete datasheet for Signal-Construct SKGD05202 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

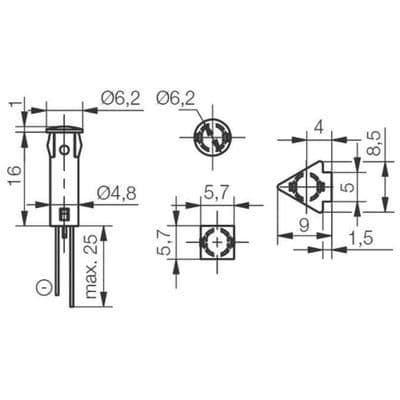

Product Images
