Signal-Construct
SKGH10222
Flush Indicator Panel Mount, 10mm Mounting Hole Size, Green LED, Tab Termination, 12 mm Lamp Size, 12 14 V
Voltage Rating14V
Current Rating10mA
MountingPanel
Quick Jump:
Technical Specifications
Signal-Construct SKGH10222 technical specifications.
General
Color
Green
Current Rating
10mA
Length
38mm
Material
PC, Polycarbonate
Mount
Panel
Ratings
IP40
RoHS Compliant
Yes
Shape
Round
Termination
Tab
Voltage Rating
14V
Compliance
RoHS
Compliant
Datasheet
Signal-Construct SKGH10222 Datasheet
Download the complete datasheet for Signal-Construct SKGH10222 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

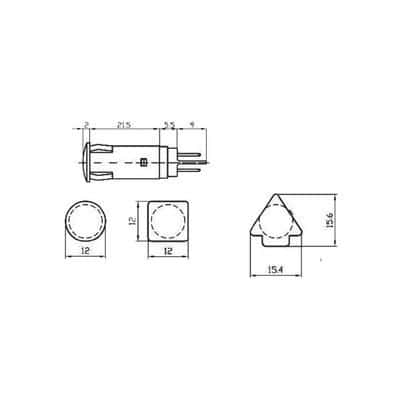

Product Images
